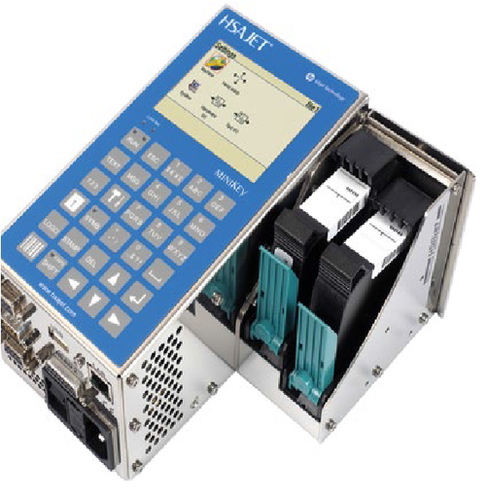

Industrial Variable Data Printing Machine

Industrial Variable Data Printing Machine

900000 INR/Set

Product Details:

X

Industrial Variable Data Printing Machine Price And Quantity

  • 1 Set
  • 900000 INR/Set
  • 300000.00 - 1500000.00 INR/Set

Industrial Variable Data Printing Machine Trade Information

  • 1 Set Per Day
  • 2 Week
  • South India

Product Description

                                                                     "We Are Only Dealing In Andhra Pradesh, Karnataka, Kerala, Puducherry, Tamil Nadu, Telangana"

Variable Data Printing Machine

On account of our immense experience in this region, we are prudentially indulged in proposing a world-class Variable Data Printing Machine. This type of printing system prints any text, graphic, etc. at high speed and with high efficiency. Ideal for numbering bar code, travel lottery tickets, communication letters, etc., it is easy to operate because of its user-friendly control panel and ergonomic design. Variable Data Printing Machine is made of top-grade powder coated metal housing, colored screen, and hi-tech printing mechanisms with developed technology in varied sizes and specifications.

Ours is an illustrious organization that is engaged in manufacturing, supplying, trading high quality Variable Data Printing Machine. The offered machines provide enormous flexibility to print variable data on small & big size sheets as per the users' requirements. These machines are widely used for communication letters, numbering & bar code and travel & lottery tickets.

Features:

  • Vacuum front feeder
  • Vacuum belts under print head
  • Side registration

Variable Data Printing Applications :

  • CAF numbering for mobile phones
  • Communication Letters
  • Numbering & Bar Code
  • Travel & Lottery Tickets
  • Scratch Cards
  • Personalized Cheque Books
  • Addressing on Envelopes
  • Telephone & Electricity Bills
  • Thick Card Board & Medicine/ other Boxes

Other Details:

  • Smart Programming allows for Pre Set Count, Batch Count and Total Count
  •  PLC Conveyor & Printing Head speed synchronization
  • Superior Technology Touch Screen Panel allow easy customer interface
  • Vacuum Front Feeder
  • Vacuum Belts under Print Head
  • Side Registration
  • Print Head Height adjustment according to Stock Thickness
  • Double Sheet Detector
  • Durable, Reliable & Safe

 Technical Specification



TechnologyHP TIJ 2.5

Print height : CBF: up to 50.8 mm / 2" per CBF

Print heads

  • 1-, 2-, 3- or 4-pen F-type printheads :
  • per CBF
  • OPC: 1-2 CBFs
  • RPC: 1-4 CBFs


Print distance :

  • 0.5-2.0 mm (nozzle to print surface)

Voltage :

  • 100-240 VAC

Print buffer :

  • 64 MB

Design software

  • OBJ InkDraw (standard)
  • Mail InkDraw (optional)

Software menu language

  • English (multiple languages)


Print functions, eg.

  • Database printing
  • (SQL - Txt - Access - Excel )
  • Prompt
  • User defined print log
  • Barcode log
  • Error log

Print options

  • Variable DPI
  • Left/Right, Upside-down
  • Other side, Bidirectional
  • Inverted, Global Ink Reduction

Layout options

  • Object rotation in 90 degree interval
  • Link field content
  • Works with mm/inch/point/pixel

Remote controlling

  • Start/Stop
  • Exchange job
  • Create jobs
  • Edit jobs
  • Change field content per print
  • Change print preferences/parameters

Interface

  • RS232 (serial)
  • Ethernet (LAN) 1 Gbit (via PC)
  • USB 2.0 (via PC)
  • CD-drive (via PC)
  • Camera connection (USB)
  • Control connection (SUB D15)
  • Encoder Input 3-33V (SUB D9)
  • In-/output 3-33 V (SUB D9)

Signals

  • Low ink signal
  • Print signal
  • Print message signal
  • Stacker/bundle signal (option)
  • Database change signal (option)
  • Database mark signal (option)
  • Batch count signal (option)
  • Check content/reject signal (option)


Complies to

  • CE directives

RPC features

  • AHE 19" Rackmount case
  • Excellent cooling features
  • 2 x USB in front panel
  • Lockable front panel
  • Exchangeable dust filter
  • Dimensions with handle (overall)(D/W/H): 540/480/177.5 mm

OPC features

  • Midi Tower
  • Cooling rear 3-speed fan, optional mount of fan in front
  • 2 x USB in front panel a
