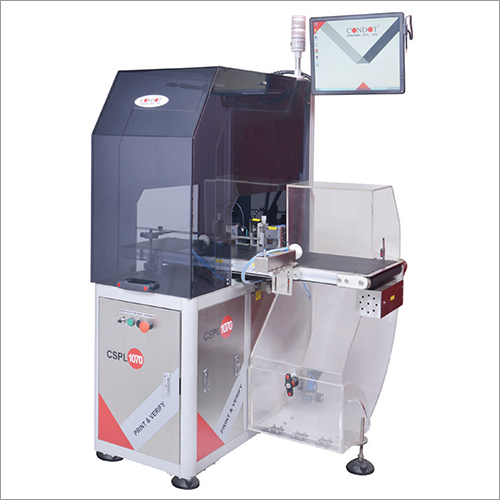

Track And Trace For Label Applicators

Product Description

Technical Specification

• Compliance to : CE directives. 21 CFR part 11
• System dimensions : Length 540 mm
• Width 700 mm
• Height 1780 mm
• Weight : 55 kg. (approx.)
• Labeling machine speed: 5-50 m/min
• Running direction : Left to right OR right to left
• Cabinet : Stainless steel with key locked space for controller
• Rejection bin —: Stainless steel rejection bin secured with key lock (Optional)
• Rejection available f : Air pressure blow-out for bottle up to system 250 g. Pneumatic push out device or >250 g. products
• Mountings : Integrated mounting bracket for printhead, Camera positioning and rejection marker
• Rejection : TU 2.5 printer for rejection marking on marker rejected label
• Emergency : Switch on front panel. Hardware
• Operation controlled emergency stop function

Connection / Input & Output

• External connections: Main power, Compressed Air, LAN
• Electrical  connection: Voltage: 230 VAC (+ 10%)
• Frequency : 50/60Hz
• Air pressure : 5 to 7 Bar main supply
• Product position : Through sensor & encoder tracking
• Machine controller : PLC
• Input / Output : 12 Input & 08 Output

Printing System

• Technology : Print heads TU 2.5 technology
• Print height : 12.7-25.4mm/%"-1" /1 or 2 pens
• Resolution : Up to 600 dpi
• Print distance : 0.5-5.0 mm dependent on ink and speed, typically 0.5-2.0 mm (nozzle to print surface)
• Ink supply : Aqueous or solvent based ink cartridges
• Print head : Switch for cartridge detection

• Camera &lenses resolution : Camera - 1.3 megapixel and Lens - 2 megapixel with 8 mm focal length (varies on application demand)
• Inspection area : 80 (H) x 110(W) mm (Depend on selection of camera and lens)
• Light : Integrated light shielding
• Verification : Verification of printed text, Image Comparison, 1D & 2D codes EAN13, Code128, PHARMACODE, Data Matrix,
• QR Code, PDF 417, AZTEC, CODE 39 & many more...
• Grading : Quality of 2D code is determined grade level between F and A (0-4). With a font-based reference scheme grade level between 0 and 100
• Qualification  : In accordance with industrial standards, printed items ISO/IEC 15415 and 15416
• Data matrix : According to GS1 and ISO/IEC 16022 standard
• Text standard : OCR-B font (possible to use other fonts)

Production

• Print position : From side
• Throughput : Up to 300 labels per minute
• Precise position: “Q” Management for bottle tracking & rejection
• Display : 17” Touch monitor
• Software : CSPL 500 GUI to control all parameters and to comply with 21 CFR Part 11
